Yuav Ua Li Cas Xaiv Cov Hniav Zoo rau Koj Cov Kab Rov Ua Dua|Granulator, Granulator, Pelletizer



Thaum ib txoj kab rov ua dua ua haujlwm zoo, nws zoo li yooj yim. Cov khoom nkag mus rau hauv, cov chips huv los yog pellets tawm, thiab qhov kev hloov mus rau nws lub hom phiaj tonnage.
Tom qab daim duab "yooj yim", qhov tseeb yog qhov ncaj qha: koj lub tshuab rov ua dua tshiab tuaj yeem pab txoj kab lossis sib ntaus.

Siv cov hniav tsis raug thiab tib cov ntsiab lus mob rov qab los:



• Ntau dhau plua plav thiab nplua
• Cov khoom loj heev uas ntsaws cov ntxaij vab tshaus thiab cov hoppers
• Ntug uas nti los yog tawg ntev ua ntej lawv yuav tsum
• Nres ntau zaus rau kev ua kom ntse thiab tsis tau npaj tseg



Phau ntawv no taug kev los ntawmyuav ua li cas xaiv cov hniav rau koj cov kab rov ua dua tshiabnyob rau hauv ib txoj kev uas ua rau muaj kev nkag siab zoo rau cov engineers, cov neeg ua haujlwm thiab cov neeg ua haujlwm pabcuam.
Peb txav mus ib kauj ruam: ua ntej txoj kab layout, tom qab ntawd cov ntaub ntawv, tom qab ntawd cov hniav hom thiab thaum kawg steel qib thiab txij nkawm.

SHJ KNIFE ua haujlwm txhua hnub nrog shredders, granulators, pelletizers thiab scrap shearing hauv yas, hlau thiab roj hmab recycling.
Lub hom phiaj ntawm tsab xov xwm no yog qhov yooj yim: muab cov qauv kev xav meej rau koj, yog li koj tuaj yeem tham txog kev xaiv cov hniav nrog cov ntaub ntawv thiab cov qauv, tsis yog kev sim thiab kev ua yuam kev xwb.





Ua ntej koj sib piv cov hniav hlau los yog cov hniav profiles, nws yuav pab tau kos ib daim ntawv qhia ceev ntawm koj cov kab.
Feem ntau cov tshuab ua raws li qhov zoo sib xws, txawm tias cov khoom lag luam sib txawv.







Rau kev rov ua dua yas, ib qho qauv zoo li no:



• Shredder - qhib bales, rhuav tshem qhov loj
• Granulator / crusher - txhais cov nti loj
• Ntxuav thiab ziab - ntxuav thiab dries flakes
• Extruder thiab pelletizer - melts thiab txiav pellets
• Kev tshuaj ntsuam thiab ntim khoom - kev tuav pov hwm zaum kawg



Cov kab hlau thiab roj hmab feem ntau ntxiv lossis sib pauv theem:



• Qhwv shear los yog nyob ruaj ruaj shear rau kab, phaj thiab hnyav seem
• Rubber thiab log tsheb shredders rau tag nrho cov log tsheb thiab cov tuab tuab



Thaum koj pom koj tus kheej kab hauv qhov yooj yim "daim duab thaiv", qhov kev sib tham ntawm cov hniav yuav yooj yim dua.
Koj tsis nug "Qhov twg yog cov hniav zoo tshaj plaws?" nyob rau hauv dav dav, tab sis "Kuv xav tau dab tsi ntawm qhov chaw nres tsheb, rau cov khoom no, ntawm no load?"







Tam sim no cov pab pawg khoom tau meej meej, koj tuaj yeem saib seb txhua lub tshuab yuav tsum ua dab tsi.
Txhua theem muaj ib txoj haujlwm sib txawv, thiab cov hniav yuav tsum phim txoj haujlwm ntawd, tsis yog cov khoom siv xwb.



3.1 Shredder Blades thiab Shredder Blocks



Shredders zaum ntawm pem hauv ntej ntawm ntau kab.
Lawv ua "hnyav nqa" los ntawm kev qhib cov khoom loj thiab txo lawv mus rau qhov loj me.



Cov kev xaiv dav:



• Ib tug ncej shredder hniavrau khov kho, tswj kev pub noj
• Twin ncej shredder hniav / ob chav ncej shredder hniavrau cov khoom loj lossis sib xyaw
• Shredder blocksrau hnyav, abrasive los yog unpredictable seem



Thaum koj xaivindustrial shredder hniav, tsom ntsoov rau:



• Cov hniav zoo nkauj - slim thiab ntse rau zaj duab xis thiab lub teeb yas, ntxaum thiab muaj zog rau cov hlau thiab cov log tsheb
• Cov hniav sib nrug - ze rau qhov tso zis me me, dav dua rau kev nkag siab dua
• Lub cev muaj zog - txaus lub cev tawv kom muaj sia nyob tsis zoo- pub thiab kis kab mob



Kev teeb tsa zoo shredder cia lub rotor rub cov khoom hauv thiab txiav nws kom huv si, tsis txhob rhuav, stalling lossis overheating.



3.2 Granulator Blades thiab Crusher Riam



Granulators thiab crushers tswj flake loj.
Lawv txiav txim siab seb cov khoom zoo npaum li cas rau hauv kev ntxuav, ziab thiab extrusion.





Key hniav hom:



• Granulator rotor thiab txaj riam
• Yas granulator riamrau zaj duab xis, lub raj mis thiab qhov chaw
• Crusher hniavrau tuab purgings thiab hnyav pieces



Thaum koj xaivgranulator hniavthiabcrusher riam, xav txog:



• Lub hom phiaj flake loj rau koj cov txheej txheem downstream
• Yuav ua li cas rhiab heev rau plua plav thiab nplua
• Txawm hais tias cov khoom zoo li bounce, swb los yog tawg ntawm kev cuam tshuam



Zoo granulator tsim tuav clearances thiab txiav cov khoom ib zaug, tsis yog peb zaug.
Qhov ntawd yog qhov uas cov hniav geometry thiab steel xaiv tau raws li kev siv lub zog tiag tiag thiab kab kev ruaj ntseg.

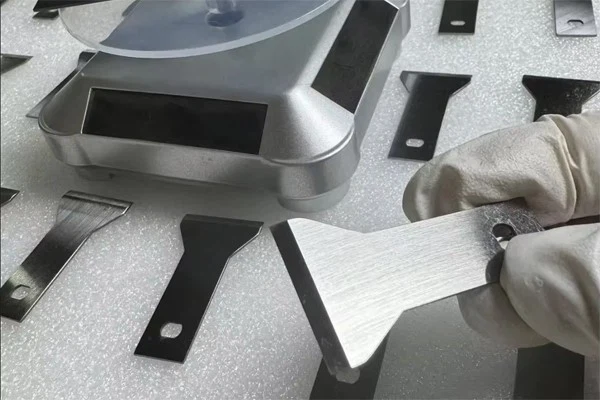

3.3 Pelletizer riam thiab tuag ntsej muag Cutters



Pelletizing ua tiav txoj haujlwm rau ntau cov kab yas.
Ntawm no cov khoom yog molten los yog semi{0}}molten, thiab lub hom phiaj hloov mus rau pellet zoo.





Tej hniav muaj xws li:



• Pelletizer riam/ pelletizer hniavnyob rau hauv strand pelletizers
• Strand pelletizer riamrau txias strands
• Underwater pelletizing hniavhauv qab dej los yog dej -ring systems
• Tuag lub ntsej muag cutters / tuag ntsej muag cutter hniavmounted ntawm qhov tuag



Ntawm no koj saib:



• Polymer hom thiab melt kub
• Kab ceev thiab xav tau pellet loj
• Abrasion los ntawm fillers los yog iav fibers



Txoj caipelletizer riamtxiav kom huv si ntawm kev ceev, txo cov tails thiab ua kom cov pellet zoo thiab ntws zoo ib yam nyob rau hauv kev khiav ntev.

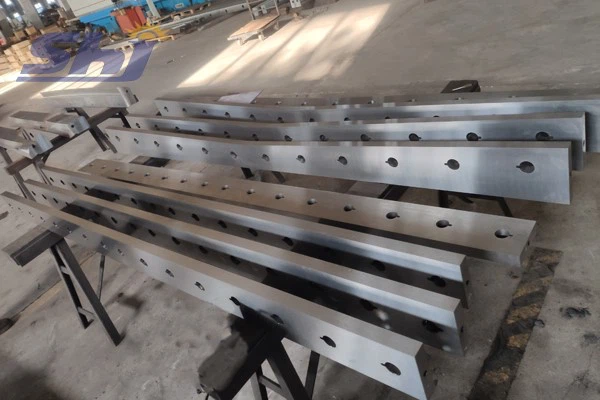

3.4 Ntxig Shear thiab Chaw Nres Nkoj Shear Blades



Cov khib nyiab txiab thiab qhov chaw nres tsheb yog nyob rau qhov kawg ntawm txoj kab.
Lawv txiav cov kab, daim hlau thiab pob khoom uas lwm lub tshuab ua tsis tau.





Main hniav hom:



• Ntxig shear hniavrau hydraulic thiab guillotine txiab
• Nyob ruaj ruaj shear hniavrau kho- lub taub hau txiav ntawm cov khoom hnyav
• Khawb hlau txiav hniavrau hauv- cov ntoo txiav txiav



Kev xaiv nyob ntawm:



• Tshooj loj thiab cov khoom seem sib xyaw
• Stroke quab yuam thiab ncej rigidity
• Ntau zaus ntawm tawm -spec seem, welds thiab torch- txiav ntug



Ntawm no, kev txiav ncaj, kev ua haujlwm nyab xeeb thiab kev kwv yees lub neej muaj txiaj ntsig ntau dua li qhov ua tiav zoo.







Thaum koj paub tias hom hniav twg koj xav tau ntawm txhua theem, cov kauj ruam tom ntej yog xaiv steel.
Hlau ua ob yam ib zaug: nws txhais tau tias ntev npaum li cas cov hniav khiav thiab yuav ua li cas nws ua tsis tau thaum thawb dhau mus.

Ib txoj hauv kev los xav txog cov qib steel raurecycling tshuab hniavyog muab lawv ua peb pawg.



4.1 Standard Wear – D2 thiab Qib Zoo sib xws



Rau ntau daim ntawv thov ruaj khov,D2 cuab yeej steel hniavthiab cov qib zoo sib xws xws li Cr12Mo1V1 ua haujlwm zoo.

Koj pom lawv ntau zaus hauv:



• Yas granulator hniav
• Crusher riam rau cov qauv yas
• Shredder blades ntawm tsis yog -abrasive loads
• Txiav cov cutters ntawm cov seem rov ua dua



Lawv muab siab hnav tsis kam ntawm tus nqi tsim nyog.
Yog tias koj cov hniav tam sim no hnav sib npaug thiab tsis nti, qhov band no feem ntau yog qhov pib.



4.2 Kev cuam tshuam siab - Alloy Tool Steels



When you cut beams, thick plate or dense bundles, impact becomes more important than pure hardness.
Qhov ntawd yog qhov twgalloy cuab yeej steel hniavtuaj hauv.

Koj tuaj yeem siv lawv rau:



• Ntxig shear hniavrau cov khoom hnyav
• Lojhlau shredder hniavnrog cov khoom noj uas tsis paub tseeb
• Qee cov roj hmab thiab lub log tsheb hauv qhov hnyav



Cov hlau no ntxiv cov tseem ceeb toughness thiab txo qhov kev pheej hmoo ntawm cov kab nrib pleb uas khiav tob rau hauv cov hniav.
Yog tias koj pom cov ntug kev sib tsoo ntau zaus lossis cov kab nrib pleb ntev, txav los ntawm D2-hom mus rau cov cuab yeej hlau hlau feem ntau ua rau qhov xwm txheej.



4.3 Kub kub los yog hnav hnyav - H13, HSS thiab Carbide



Qee txoj haujlwm ntawm txoj kab khiav kub lossis fim kev puas tsuaj.Tej xwm txheej:



• Kub- ntsej muagtuag ntsej muag cutters
• H13 pelletizer riamrau siab -kub polymer kwj
• HSS granulator hniavntawm rotor ceev heev
• Carbide recycling hniavrau iav- puv, ntxhia- puv lossis fiber ntau- cov khoom siv ntxiv



Cov kev xaiv no raug nqi ntau dua thiab xav tau kev siv ceev faj, tab sis lawv tuaj yeem daws cov teeb meem uas cov qauv hlau tsis tuaj yeem kov.
Lawv ua rau muaj kev nkag siab zoo thaum koj tuaj yeem txuas qhov tsis ua haujlwm rau cov cua sov lossis kev puas tsuaj loj, tsis yog kev hnav khaub ncaws.





Txawm tias muaj cov hlau zoo tshaj plaws thiab tsim qauv, cov hniav uas tsis haum lub tshuab yuav tseem ua tsis tiav.
Yog li ua ntej koj ua tiav qhov kev xaiv ntawmOEM hloov cov hniavlos yog kev cai riam, nco ntsoov xyuas cov hauv paus.Cov ntsiab lus tseem ceeb:



• Mounting style thiab lub rooj zaum zoo li
• Qhov tseeb rotor, arbor lossis tus tuav qhov ntev
• Lub hom phiaj clearances ntawm txav thiab ruaj riam
• Sab laug / sab xis / mirrored qhov chaw thiab lawv txoj haujlwm



Koj tuaj yeem ua haujlwm los ntawm kev kos duab, 3D cov ntaub ntawv lossis cov qauv ntawm lub cev.
Lub hom phiaj yog txhawm rau txhim kho cov hniav, teeb qhov khoob thiab pib txoj kab tsis muaj qhov kawg shimming, sib tsoo thiab kwv yees.









Xaiv cov hniav tsis yog ib qho - lub sijhawm tshwm sim.
Nyob rau tib lub sijhawm, koj cov ntaub ntawv qhia koj yog tias qhov kev xaiv yog lawm.

Ib qho yooj yim, tswv yim voj zoo li no:



• Log tons ntawm ntug

Taug qab ntau npaum li cas tons koj khiav ntawm txhua txheej ntawm shredder hniav, granulator riam, pelletizer riam los yog seem shear hniav.



• Sau cov qauv hnav

Nco ntsoov seb cov hniav sib npaug sib npaug, nti ntawm cov npoo los yog tawg ntawm ib qho chaw tshwj xeeb.

Cov qauv no taw qhia txog teeb meem nrog steel, hardness lossis clearances.



• Kho lub qhov rais sib tsoo

Teem lub phiaj xwm rov ua dua ua ntej qhov kev poob qis dhau lawm.

Kho lub sijhawm kom txog rau thaum lub neej, qhov zoo thiab tus nqi ib tuj mus txog qhov sib npaug ruaj khov.



Tsuas yog ob peb lub voj voog ntawm cov ntaub ntawv, koj thiab koj tus neeg muag khoom tuaj yeem hais lus hauv cov lej es tsis txhob kwv yees thiab txiav txim siab yog tias qhov hloov pauv ntawm cov hlau, geometry lossis teeb tsa ua rau kev nkag siab.









Ntawm SHJ KNIFE, peb tsom mus raukev cai muaj cov hniav rau recycling.Nws suav nrog:



• Shredder blades thiab shredder blocksrau yas, hlau thiab roj hmab
• Yas granulator hniav thiab crusher riam
• Pelletizer riam thiab tuag ntsej muag cutters
• Scraper shear hniav, nyob ruaj ruaj shear hniav thiab seem hlau txiav hniav



Hauv cov haujlwm tiag tiag peb feem ntau:



• Pib los ntawm koj cov kab layout thiab cov khoom tseem ceeb ntws
• Tshawb xyuas cov duab kos, cov qauv thiab cov ntaub ntawv lub neej uas koj twb tau taug qab
• Qhia hom hniav thiab qib steel rau txhua qhov chaw nres tsheb, tsis yog ib rab riam ib zaug xwb
• Khaws cov specs ruaj khov ntawm cov ntaub ntawv kom cov nroj tsuag, cov tuam txhab lag luam thiab cov koom tes pabcuam hauv zos tuaj yeem rov xaj nrog kev ntseeg siab



Lub tswv yim yog kho kojrecycling tshuab hniavraws li ib qho kev sib txuas, tsis yog cais cov khoom seem.
Thaum koj kho cov hniav xaiv, kev saib xyuas thiab tus nqi ib tuj hla tag nrho cov kab, txhua txoj haujlwm ua haujlwm yooj yim dua.













Cov hniav dab tsi kuv xav tau rau txoj kab rov ua dua tshiab?



Cov kab yas feem ntau siv peb lub ntsiab hniav:

• Shredder hniavqhib thiab txo cov khoom loj
• Granulator hniav los yog yas granulator riamlos teem flake loj
• Pelletizer riam los yog tuag ntsej muag cutterstxiav pellets thaum kawg

Qhov sib xyaw ua ke yog nyob ntawm koj cov khoom siv thiab cov khoom lag luam, tab sis cov qauv no npog feem ntau cov layouts.



Kuv yuav xaiv li cas ntawm shredder hniav thiab granulator hniav?



Sivshredder hniavthaum koj yuav tsum tau ua txhaum loj, ua tsis taus pa rau hauv chunks uas yuav haum rau lub tshuab tom ntej.
Sivgranulator hniavthaum koj twb muaj cov khoom tswj tau thiab xav tau kev tswj flake loj nrog cov hmoov av tsawg.

Hauv ntau kab koj xav tau ob qho tib si: shredding thawj zaug, granulating thib ob.



Dab tsi yog cov hlau zoo tshaj plaws rau kev siv lub tshuab rov ua dua?



Tsis muaj ib qho "zoo tshaj" hlau rau txhua txoj haujlwm.

• D2 thiab cov qib muaj feem xyuamua hauj lwm zoo rau ntau tus qauv loads.
• Alloy cov cuab yeej steelpab thaum muaj kev cuam tshuam thiab poob siab.
• H13, HSS thiab carbidedaws teeb meem nrog cua sov thiab kev puas tsuaj heev.

Koj xaiv raws li koj cov ntaub ntawv, theem cuam tshuam thiab lub neej xav tau, tsis yog ntawm cov ntawv teev npe.



Ntev npaum li cas kuv yuav tsum sharpen shredder los yog granulator hniav?



Nws nyob ntawm cov khoom siv, kev sib kis thiab qib steel.
Lub ntsiab lus pib zoo yog kom ua kom pom tseeb thaum koj pom kev nplua ntau dua, ntau lub zog kos lossis rougher txiav.

Yog tias koj teev tons ib ntug rau ob peb lub voj voog, tus qauv ruaj khov yuav tshwm sim.
Tom qab ntawd koj tuaj yeem teem caij sib tsoo qhov rai es tsis txhob tos qhov ua tsis tiav.



Ib tus khub puas tuaj yeem txhawb nqa cov hniav rau kuv cov kab rov ua dua tshiab?



Yog lawm, tsuav yog tus khub nkag siab tag nrho cov kab ntawm shredder mus rau pelletizer thiab scrap shear.
SHJ KNIFEua haujlwm nrog txhua tsev neeg cov hniav loj ntawm cov kab rov ua dua tshiab, uas ua rau nws yooj yim rau kev sib koom tes specs, Tshuag thiab kev saib xyuas thoob plaws ntau lub tshuab thiab chaw.



Ua li ntawd, koj tsis yog yuav cov hniav xwb.
Koj tsim lub tswv yim hniav uas haum rau koj txoj kab rov ua dua tshiab.
